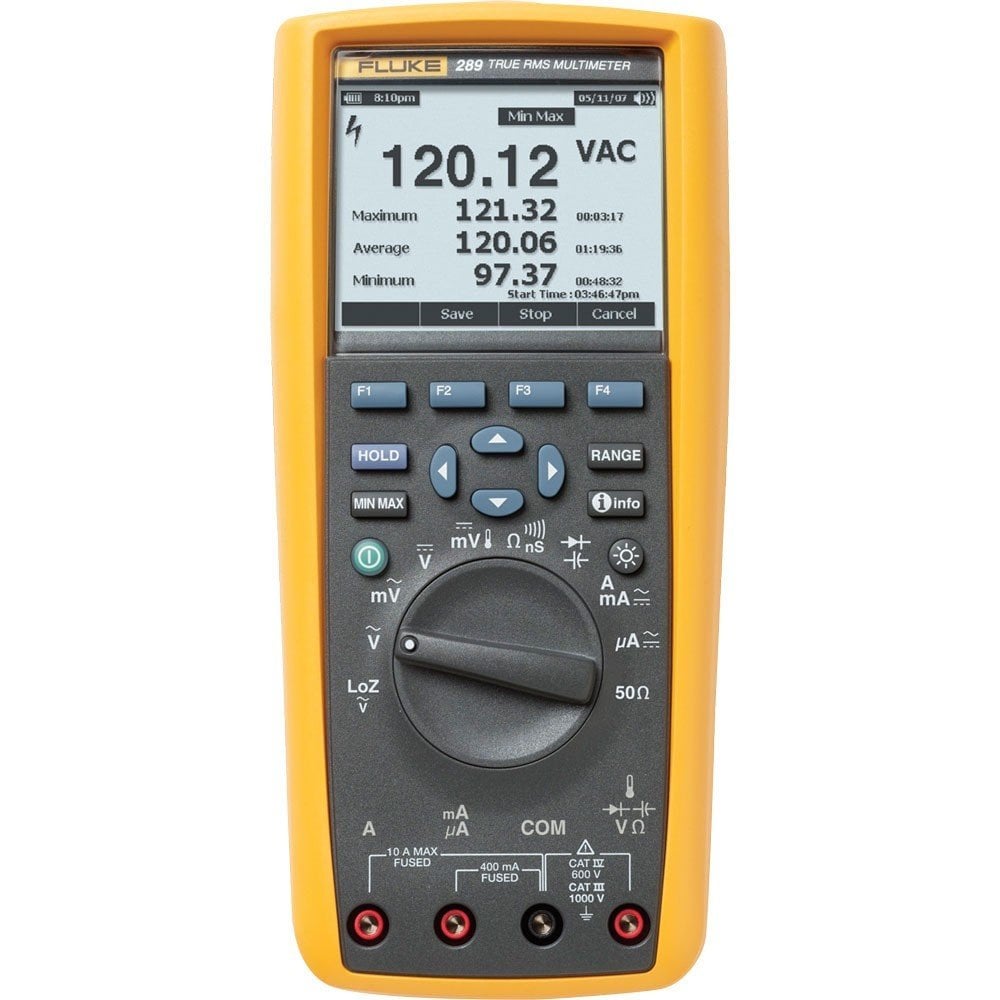

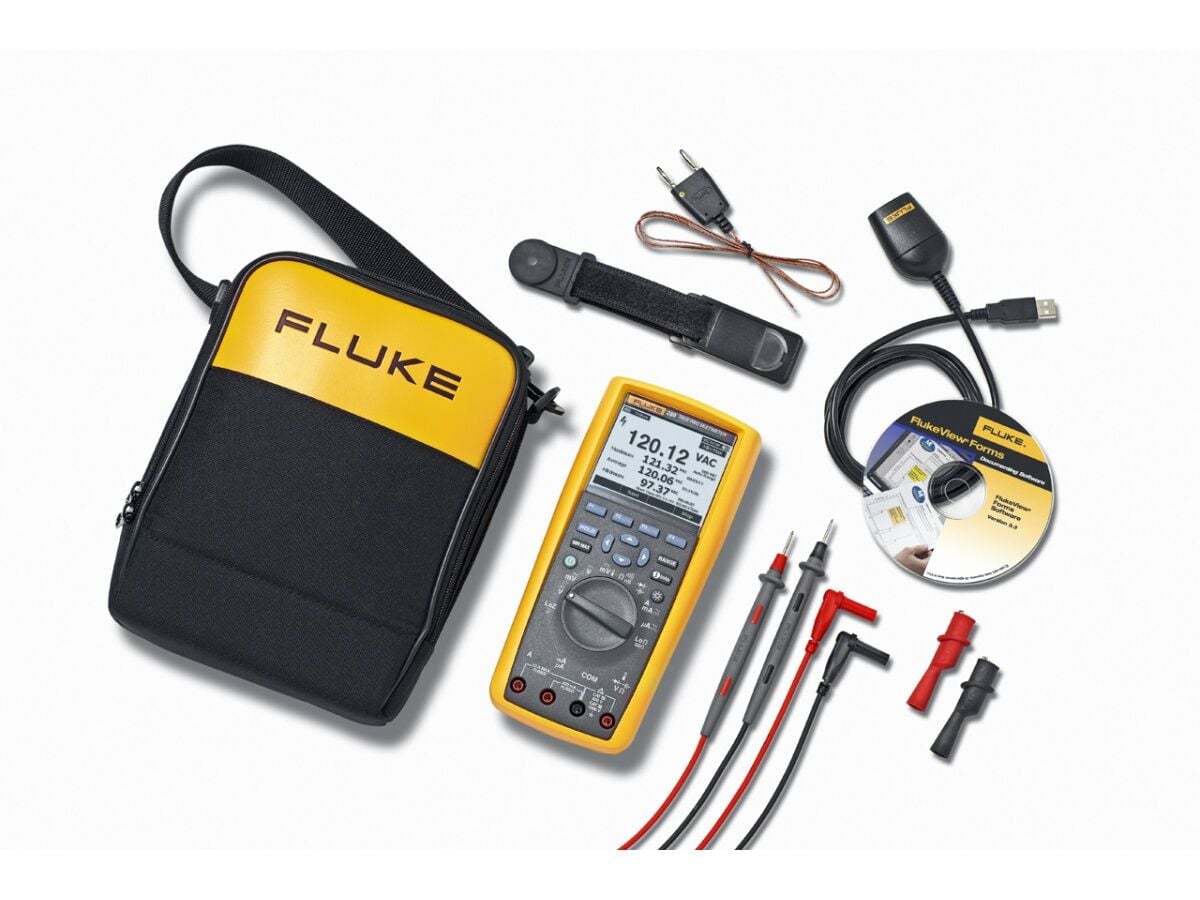

Fluke 289 FlukeView® Forms Kombo Seti

Equipped with new functionality

• NEW – Now compatible with Fluke Connect mobile app and all Fluke FC enabled test tools with optional ir3000 FC infrared connector (sold separately).
• NEW – Let your team see what you see in an instant with ShareLive™ video call (requires Fluke Connect mobile app and ir3000 FC wireless connector).
• TrendCapture graphically displays logged data session to quickly determine whether anomalies may have occurred.
• Zoom on trend provides unprecedented ability to view and analyze TrendCapture data; zoom in up to 14 times.
• Selectable ac filter (smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy.
• Adjustable recording and auto hold thresholds, specify a percentage change in the readings that begins a new event.
• Large 50,000 count, 1/4 VGA dot matrix display with white backlight.
• Logging function with expanded memory for unattended monitoring of signals over time. Using on-board TrendCapture users can graphically review logged readings without needing a PC. Store up to 15,000 recorded events.
• Save multiple logging sessions before pc download is necessary.
• Two terminal 50 ohm range with 1 milliohm resolution, 10 mA source current. Useful for measuring and comparing differences in motor winding resistance or contact resistance.
• Low Pass filter for accurate voltage and frequency measurements at the same time on adjustable speed motor drives and other electrically noisy equipment.
• LoZ Volts. Low impedance voltage function for eliminating ghost voltages. Also recommended when testing for absence or presence of live power.
• On board help screens for measurement functions. Unsure about a function - go to that function and press the "i" button.
• Real time clock for automatic time stamping of saved readings.
• Relative mode to remove test lead resistance from low ohms or capacitance measurements.
• True-RMS ac voltage and current for accurate measurements on non-linear signals.
• Measure up to 10 A (20 A for 30 seconds).
• 100 mF capacitance range.
• Peak capture to record transients as fast as 250 μs.
• Premium test leads and alligator clips included.
• Amp jack plugs included.
• Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks.
• FlukeView forms enable you to document, store and analyze individual readings or a series of measurements, then convert them into professional-looking documents.
• Limited lifetime warranty.
