Sıcaklık Kontrollü Termostat

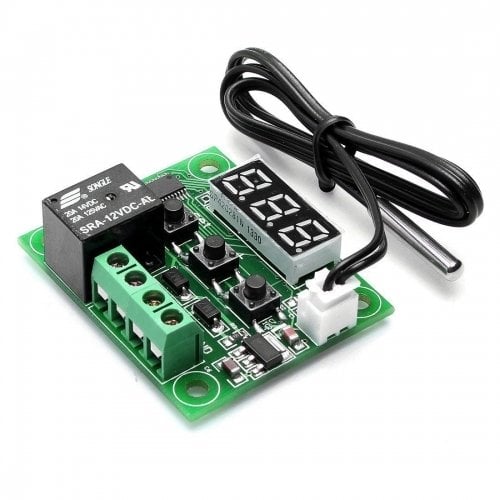

Sıcaklık kontrollü dijital termostat W1209
Dondurucular, su tankları, buzdolapları, endüstriyel soğutucular ve kaynatıcılar, kuluçka sistemleri, akvaryum sistemleri gibi pek çok uygulamalarda, sıcaklık kontrol ünitesi olarak kullanılabilir.
-50 ~ 110°C W1209 Digital thermostat Temperature Control Switch 12V + sensor
Features:
- Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, bolier,
- steamer, industrial equipments and other temperature-controlled systems.
- Specifications:
- Temperature range :-50 ~ 110 ℃
- Temperature control mode: ON / OFF
- Resolution: -9.9 to 99.9 is 0.1°C, other temperature segment is 1℃
- Measurement Accuracy: 0.1 ° C
- Control accuracy: 0.1 ° C
- Hysteresis accuracy: 0.1 ° C
- Refresh rate: 0.5 Sn
- High temperature protection: 0 ~ 110 ° C
- Input Power: DC12V
- Measuring inputs: NTC (10K 0.5%) Waterproof sensor
- Output: 20A 14V DC - 20A 125V AC Relay
- Environmental requirements: -10 ~ 60 ℃ Humidity 20% -85%
- Power consumption: Static current:<=35MA, Attract current:<=65MA
- Easy and convenient to use
- Size: Approx. 48 (L) x 40 (W) x 14 (D) mm
- Total weight:20 g
- Package weight:30 g
Setting method:
|
Long press SET(5 seconds) to enter the main menu setting |
|||
|
Code |
Code description |
Setting range |
Factory setting |
|
P0 |
Cooling/Heating |
C/H |
C |
|
P1 |
Hysteresis setting |
0.5-15 |
2 |
|
P2 |
Highest temperature |
110°C |
110°C |
|
P3 |
Lowest temperature |
-50°C |
-50°C |
|
P4 |
Temperature correction |
-7-7°C |
0°C |
|
P5 |
Delay start time |
0-10 minutes |
0 |
|
P6 |
High temperature alarm |
0-110 °C |
OFF |
|
Long press +- to restore the factory setting(In Shutdown Mode) |
|||
Long press SET 5 seconds to enter the main menu settings, press the + - toggle P0 ... P8 long press
SET or 10 seconds of no key activity confirmed their return to the controller
How to use:
- Connect the power supply and the load, you can supply to the controller,
- Is displayed as a measured temperature,
- Press the SET button, the display flashes the temperature,
- Press - to set the desired temperature,
- After setting press SET to confirm return,
- The controller automatically performs the relay by setting off!
- Lights, LED status descriptions:
- Indicator: Off The relay is switched off, Always indicate the relay is closed.
- LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close the relay, the display --- as high temperature protection.
Paket İçeriği :
- 1 Adet Sıcaklık Kontrollü Termostat
- 1 Adet Su Geçirmez Sıcaklık Sensörü
