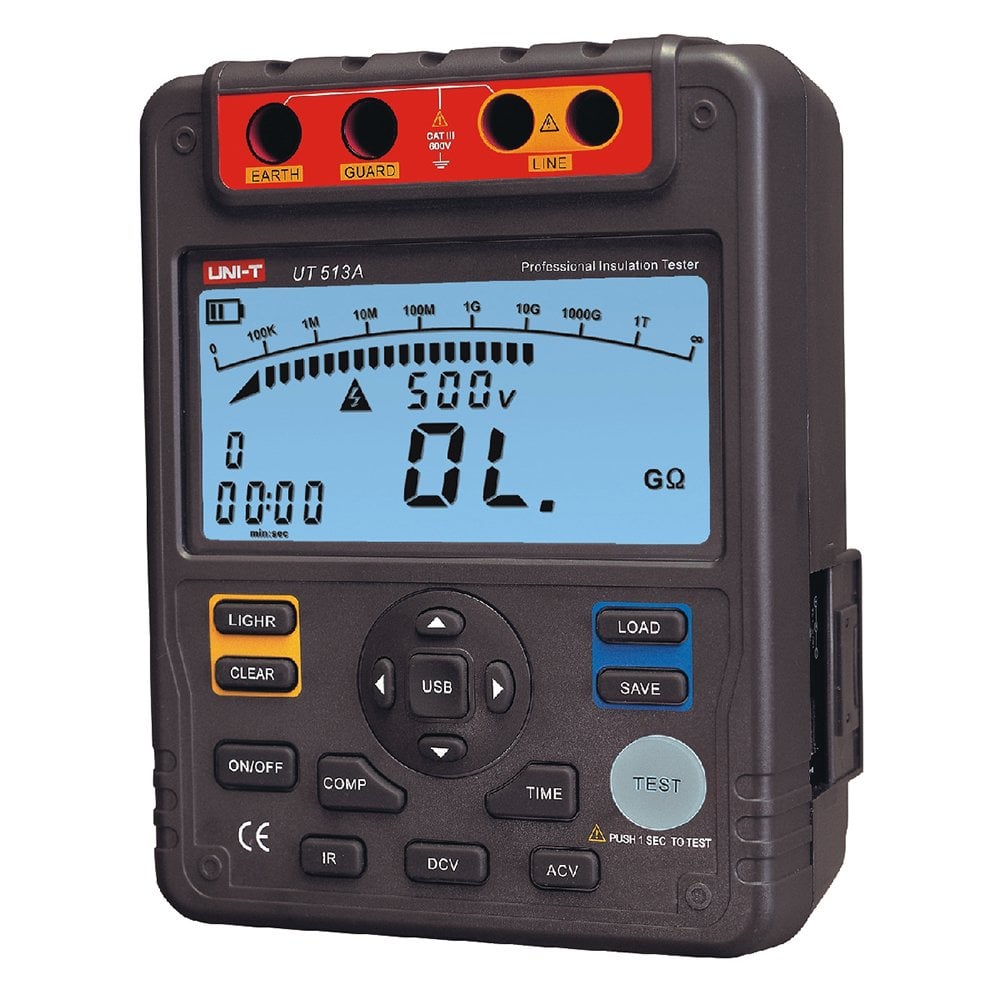

Unit UT 513A Izolasyon Megeri
| Dijital Meger Cihazı | : | Evet |
| İzolasyon Megeri | : | Evet |
| Test Voltajı | : | 5000 Volt |
|
Specifications |
Range |
Accuracy |
|
|
Model |
|
UT513A |
|
|
Insulation Resistance (Ω) |
Test Voltage |
500V/1000V/2500V/5000V |
0%～20% |
|
500V |
0.5MΩ~20GΩ |
±(3%+5) |
|
|
1000V |
1.0MΩ~40GΩ |
±(3%+5) |
|
|
2500V |
2.5MΩ~100GΩ |
±(3%+5) |
|
|
5000V |
5.0MΩ~1000GΩ |
±(3%+5) |
|
|
Short Circuit Current |
|
>3.0mA |
|
|
DC Voltage (V) |
600V |
±(2%+3) |
|
|
AC Voltage (V) |
600V |
±(2%+3) |
|
|
Features |
|||
|
Auto Range |
|
√ |
|
|
Auto Power Off |
|
√ |
|
|
Secondary Display |
|
√ |
|
|
Low Battery Indication |
|
√ |
|
|
Data Storage |
|
18 |
|
|
Comparison |
|
√ |
|
|
DAR |
|
√ |
|
|
PI |
|
√ |
|
|
USB Interface |
|
√ |
|
|
LCD Backlight |
|
√ |
|
|
Analog Bar Graph |
|
30 |
|
|
Overload Indication |
|
√ |
|
|
High Voltage Indication |
|
√ |
|
|
Timer |
Around 15 Minutes |
√ |
|
|
General Characteristics |
|||
|
Power |
1.5V Batteries (LR14) x 8 |
||
|
LCD Size |
123mm x 58mm |
||
|
Product Color |
Red and grey |
||
|
Product Weight |
UT511-1.2kg, UT512-1.8kg, UT513A-2kg |
||
|
Product Size |
202mm×155mm×94mm |
||
|
Standard Accessories |
2 pcs of one plug test lead to one alligator clip (Black and Green), 1 piece of two plugs test lead to one alligator clip (Red), Batteries, USB Cable, PC Software CD, Power Adapter |
||
|
Standard Individual Packing |
Gift Box, Tool Box, User Manual |
||
|
Standard Quantity Per Carton |
4pcs |
||
|
Standard Carton Measurement |
525mm x 335mm x 345mm |
||
|
Standard Carton Gross Weight |
19kg |
||
|
Optional Accessories |
Power Adapter |
||
