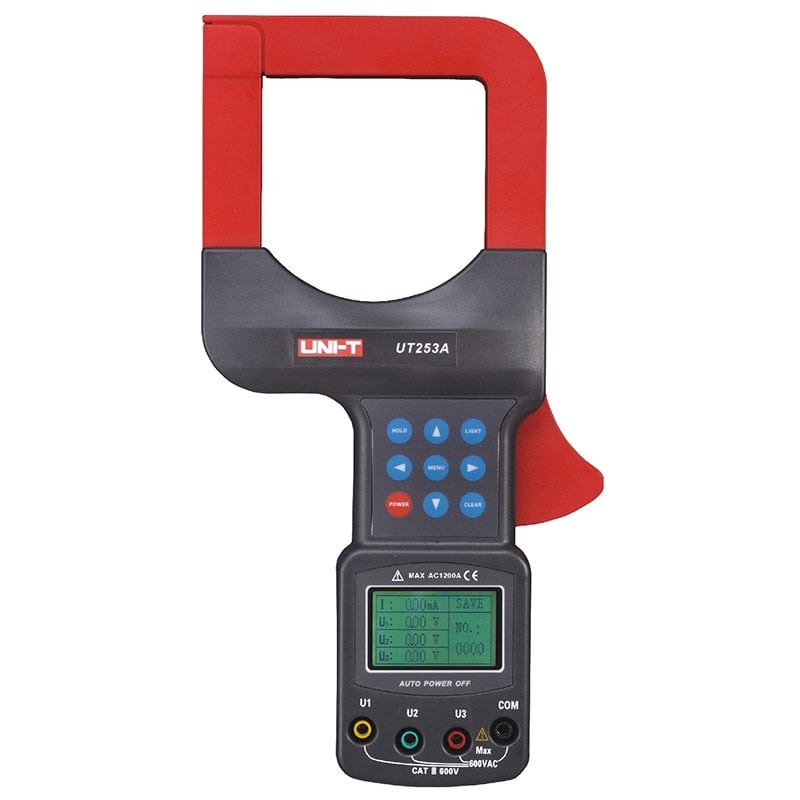

UT 253A Geniş Ağızlı Kaçak Akım ölçer
|
General Functions |
Range |
Accuracy |
|
|
Type |
UT253A |
||
|
Leakage Current (A) |
Range |
0.00mA～300A |
±(1.5%+3) |
|
300A～1200A |
±(2%+3) |
||
|
Voltage (Frequency) |
0V～600V (50Hz/60Hz) |
√ |
|
|
Resolution |
0.01mA |
||
|
AC (V) |
Range |
0.00V～600V |
±(1.5%+3) |
|
Frequency |
50Hz/60Hz |
√ |
|
|
Resolution |
0.01V |
√ |
|
|
Special Functions |
|||
|
Display Mode |
LCD: 128 dots×64 dots |
√ |
|
|
Jaw Size |
80mm×80mm |
√ |
|
|
Auto-range |
|
√ |
|
|
RS-232 Data Transmission |
|
√ |
|
|
Storage |
|
200 groups |
|
|
LCD Backlight |
|
√ |
|
|
Data Hold |
|
√ |
|
|
Overload Indication |
OL |
√ |
|
|
Auto Power-off |
15 mins |
√ |
|
|
Low Battery Indication |
≤5.2V |
√ |
|
|
Test Type |
Clamp CT, integration method |
√ |
|
|
General Characteristics |
|||
|
Power Supply |
1.5V Alkaline battery (5#)×4 |
||
|
LCD Size |
43mm X 29mm |
||
|
Product Color |
Red and grey |
||
|
Product Weight |
1000g |
||
|
Product Size |
275mm X 145mm X 40mm |
||
|
Standard Accessories |
Batteries, test leads (4 pieces: 3 red, 1 black), RS232 data cable, PC software CD, toolbox |
||
|
Standard Package |
Gift box, user manual, toolbox |
||
|
Standard Package Quantity |
6pcs |
||
|
Standard Package Size |
610mm X 375mm X 320mm |
||
|
Standard Package Gross Weight |
25kg |
||
