CH341A EEprom Flash Programlayıcı
CH341A 24 25 Serisi EEPROM, Flash, Bios Programlayıcı. Türkçe destekli programlama yazılımı.
https://wch-ic.com/products/CH340.html
Özellikler :
- USB Eeprom Flash Programlayıcı
- 24 serisi EEPROM desteği
- 25 serisi SPI Flash 8pin/16pin desteği
- USB to TTL port çevirici desteği. (Zif soket yanındaki pin headerlar üzerinden)
- CH341A entegre
- 25 Serisi entegreleri otomatik tanıma.
- Besleme ve durum ledi
Özellikler:
- USB portu TTL seri porta çevirir.
- CH340G entegresi kullanılmaktadır.
- 3 Adet kullanıcı Ledi. Power, Rx, Tx.
- Standart USB type A erkek soket vardır.
- 6 Pinli ttl konnektor çıkış pinleri vardır. Bu pinler 5V, VCC, 3.3V, TXD, RXD ve GND dir. Jumper ile çalışma voltajı VCC pini üzerinden 5V yada 3.3V seviyesine set edilir.
- TTL çıkışlar sayesinde kolaylıkla bir mcu ile haberleşmeyi sağlar.
- Windows 98SE, 2000, XP, Vista, Window7, Windows10 (32/64 Bit)
- Ölçüler 55 mm x 16 mm
- Simulation interface, you can upgrade serial peripherals
- Supports common MODE contact signal
- Supports IRDA SIR infrared communication
- Provide RS232, RS485, RS422 interface
Not : Devre şeffaf makaron kaplıdır.
Sürücü :
Aşağıdaki linkten CH341SER.EXE dosyası indirilip kurulum yapılmalıdır.
https://wch-ic.com/products/CH340.html

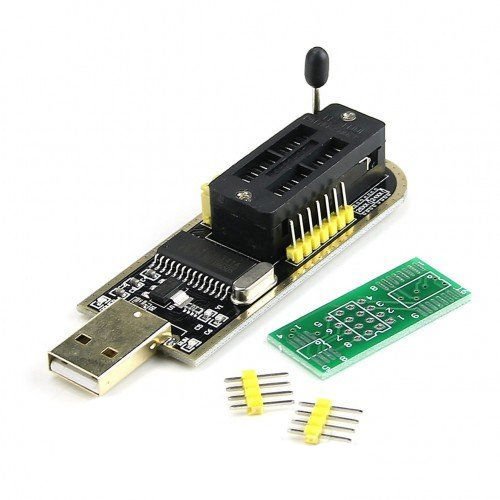

Paket içeriği :
- 1 Adet CH340G Modül
Yazılım : Türkçe destekli bilgisayar yazılımı, ürünü satın aldığınızda mail yolu ile yollanacatır.
Paket içeriği :
- 1 X CH341A USB Programmer
- 1 X 8-16 pin smd entegre takılabilecek boş pcb
- 2 X 4P Pin Header
Desteklediği entegreler :
=====================25\26 SPI FLASH=====================
AMIC
A25L05P A25L512 A25L010 A25L10P A25L020
A25L20P A25L040 A25L40P A25L080 A25L80P
A25L016 A25L16P A25L032
ATMEL
AT25F512 AT25F512A AT25F512B AT25F1024 AT25F1024A
AT25FS010 AT25DF021 AT25F2048 AT25DF041A AT25F4096
AT25FS040 AT26DF041A AT26F004 AT25DF081A 1.8V AT25DL081 1.8V
AT26DF081A AT25DF161 AT26DF161 AT26DF161A AT25DF321
AT25DF321A AT26DF321 AT25DF641
COMMON
25X005 25X05 25X10 25X20 25X40
25X80 25X16 25X32 25X64 25X128
25X256 25X512 25X1024 25X2048
EON
EN25B05 EN25B05T EN25F05 EN25LF05 EN25P05
EN25D10 EN25F10 EN25LF10 EN25P10 EN25D20
EN25F20 EN25LF20 EN25D40 EN25F40 EN25LF40
EN25D80 EN25F80 EN25P80 EN25Q80 EN25QH80
EN25T80 EN25B16 EN25B16T EN25D16 EN25F16
EN25H16 EN25Q16 EN25QH16 EN25T16 EN25B32
EN25B32T EN25F32 EN25P32 EN25Q32 EN25QH32
EN25B64 EN25B64T EN25F64 EN25Q64 EN25QH64
EN25F128 EN25Q128 EN25QH128
ES
ES25P10 ES25P20 ES25M40 ES25M40A ES25P40
ES25M80 ES25M80A ES25P80 ES25M16 ES25M16A
ES25P16 ES25P32
ESMT
F25L004A F25L04UA F25L008A F25L08PA F25L016A
F25L16PA F25L32PA F25L32QA F25L64PA
GIGADEVICE
GD25Q512 GD25Q10 GD25Q20 GD25D40 GD25F40
GD25D80 GD25F80 GD25Q80 GD25T80 GD25Q16
GD25Q32 GD25Q64 GD25Q128
INTEL
25F160S33B 25F320S33B 25F640S33B
KH
KH25L4006E KH25L8006E(OTP) KH25L8036D KH25L1606E(OTP)
MICRON
N25Q64A
MSHINE
MS25X05 MS25X10 MS25X20 MS25X40 MS25X80
MS25X16 MS25X32 MS25X64 MS25X128
MXIC
MX25L512 MX25V512 2.5V MX25L1005 MX25L2005 MX25L2026
MX25L4005A MX25U4035 1.8V(OTP) MX25V4005 2.5V MX25V4035 2.5V MX25L8005
MX25L8006E(OTP) MX25L8035E MX25L8036E MX25U8033E 1.8V MX25U8035 1.8V(OTP)
MX25V8005 2.5V MX25V8006E 2.5V MX25V8035 2.5V MX25L1605D MX25L1606E(OTP)
MX25L1608D(OTP) MX25L1608E(OTP) MX25L1633E MX25L1635E(OTP) MX25L1636D
MX25L1636E MX25U1635E 1.8V(OTP) MX25L3205D MX25L3206E(OTP) MX25L3208D(OTP)
MX25L3208E(OTP) MX25L3225D MX25L3233F(OTP) MX25L3235D MX25L3235E(OTP)
MX25L3236D MX25L3236F(OTP) MX25L3237D MX25L3239E(OTP) MX25L3273E(OTP)
MX25L3273F(OTP) MX25U3235E 1.8V MX25L6405D MX25L6406E(OTP) MX25L6408D(OTP)
MX25L6408E(OTP) MX25L6433F(OTP) MX25L6436E(OTP) MX25L6436F(OTP) MX25L6439E(OTP)
MX25L6445E(OTP) MX25L6455E MX25L6465E(OTP) MX25L6473E(OTP) MX25L6473F(OTP)
MX25L6475E(OTP) MX25U6435E 1.8V(OTP) MX25L12805D(OTP) MX25L12835E MX25L12835F(OTP)
MX25L12836E(OTP) MX25L12839F(OTP) MX25L12845E(OTP) MX25L12855E(OTP) MX25L12865E(OTP)
MX25L12873F(OTP) MX25U12835F 1.8V MX25L25635E(OTP) MX25L25635F(OTP) MX25L25639F(OTP)
MX25L25735E(OTP) MX25L51245G(OTP)
NEXFLASH
NX25P10 NX25P20 NX25P40 NX25P80 NX25P16
NX25P32
PMC
PM25LV512A PM25LV010A PM25LV020 PM25LV040 PM25LV080B
PM25LV016B
SAIFUN
SA25F005 SA25F010 SA25F020 SA25F040 SA25F080
SA25F160 SA25F320
SPANSION
S25FL001 S25FL002 S25FL004 S25FL040 S25FL008
S25FL016 S25FL160 S25FL032 S25FL064 S25FL128
S25FL129 S25FL256 S25FL512
SST
SST25VF512 SST25VF512A SST25VF010 SST25VF010A SST25LF020A
SST25VF020 SST25VF020A SST25VF040 SST25VF040A SST25VF040B
SST25VF080B SST25VF016B SST25VF032B SST25VF064C
ST
M25P05A M25P10A M25PE10 M25P20 M25PE20
M25P40 M25PE40 M25P80 M25PE80 M25PX80
M25P16 M25PE16 M25PX16 M25P32 M25PE32
M25PX32 M25P64 M25PE64 M25PX64 M25P128
WINBOND
W25P10 W25X10 W25X10A W25X10AL W25X10L
W25P20 W25Q20BW W25X20 W25X20A W25X20AL
W25X20L W25P40 W25Q40BV W25Q40BW W25X40
W25X40A W25X40AL W25X40L W25P80 W25Q80BV
W25Q80BW W25Q80V W25X80 W25X80A W25X80AL
W25X80L W25P16 W25Q16BV W25Q16DW W25Q16V
W25X16 W25P32 W25Q32BV W25Q32DW W25Q32FV
W25Q32V W25X32 W25P64 W25Q64BV W25Q64DW
W25Q64FV W25Q64FW W25X64 W25Q128BV W25Q128DW
W25Q128FV W25Q128FW W25Q256BV W25Q256FV
=====================25 SPI EEPROM=====================
ATMEL
AT25010 AT25020 AT25040 AT25080 AT25160
AT25320 AT25640 AT25128 AT25256 AT25512
MICROCHIP
25AA080C 25AA080D 25C080 5V 25LC080C 25LC080D
25AA160 25C160 5V 25LC160 25AA320 25C320 5V
25LC320 25AA640 25C640 5V 25LC640 25AA256
25LC256 25AA1024 25LC1024
=====================24 EEPROM=====================
ATMEL
AT24C01 AT24C01A AT24C01B AT24C02 AT24C02A
AT24C02B AT24C04B AT24C04 AT24C04A AT24C08
AT24C08A AT24C08B AT24C16B AT24C16 AT24C16A
AT24C32B AT24C32A AT24C32 AT24C64 AT24C64A
AT24C64B AT24C128B AT24C128 AT24C128A AT24C256B
AT24C256 AT24C256A AT24C512B AT24C512A AT24C512
AT24C1024 AT24C1024A AT24C1024B
CATALYST
CAT24C01 CAT24WC01 CAT24WC02 CAT24C02 CAT24C04
CAT24WC04 CAT24WC08 CAT24C08 CAT24WC16 CAT24C16
CAT24WC32 CAT24C32 CAT24WC64 CAT24C64 CAT24WC128
CAT24C128 CAT24WC256 CAT24C256 CAT24C512 CAT24WC512
CAT24C1024 CAT24WC1024
COMMON
24C01 3V 24C01 5V 24C02 3V 24C02 5V 24C04 5V
24C04 3V 24C08 3V 24C08 5V 24C16 5V 24C16 3V
24C32 5V 24C32 3V 24C64 5V 24C64 3V 24C128 5V
24C128 3V 24C256 5V 24C256 3V 24C512 5V 24C512 3V
24C1024 3V 24C1024 5V 24C2048 5V 24C2048 3V 24C4096 5V
24C4096 3V
FAIRCHILD
FM24C01L FM24C02L FM24C03L FM24C04L FM24C05L
FM24C08L FM24C09L FM24C17L FM24C16L FM24C32L
FM24C64L FM24C128L FM24C256L FM24C512L FM24C1
HOLTEK
HT24C01 &a
