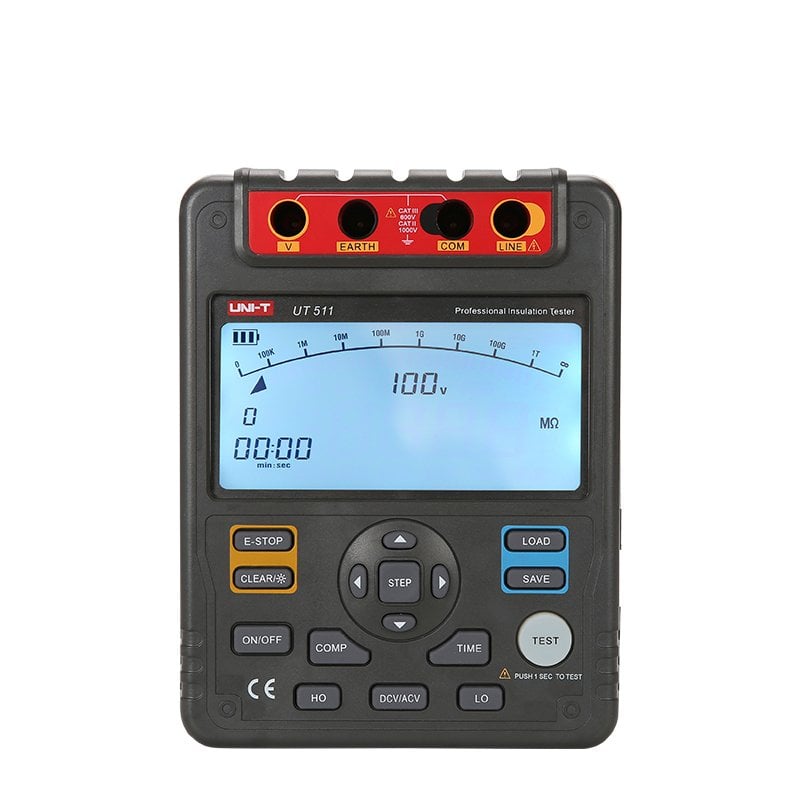

UT 511 izolasyon Megeri
| Dijital Meger Cihazı | : | Evet |
| İzolasyon Megeri | : | Evet |
| Test Voltajı | : | 1000 Volt |
|
Specifications |
Range |
Accuracy |
|
|
Model |
|
UT511 |
|
|
Insulation Resistance (Ω) |
Test Voltage |
100V/250V/500V/1000V |
0%～20% |
|
100V |
0.1MΩ~500MΩ |
±(3%+5) |
|
|
250V |
0.5MΩ~2GΩ |
±(3%+5) |
|
|
500V |
1MΩ~4GΩ |
±(3%+5) |
|
|
1000V |
2MΩ~10GΩ |
±(3%+5) |
|
|
Short Circuit Current |
|
<2mA |
|
|
DC Voltage (V) |
1000V |
±(2%+3) |
|
|
AC Voltage (V) |
750V |
±(2%+3) |
|
|
Low Resistance (Ω) |
0.1Ω～999.9Ω |
±(1%+3) |
|
|
Features |
|||
|
Auto Range |
|
√ |
|
|
Auto Power Off |
|
√ |
|
|
Low Battery Indication |
|
√ |
|
|
Data Storage |
|
18 |
|
|
Comparison |
|
√ |
|
|
DAR |
|
√ |
|
|
PI |
|
√ |
|
|
LCD Backlight |
|
√ |
|
|
Analog Bar Graph |
|
30 |
|
|
Overload Indication |
|
√ |
|
|
High Voltage Indication |
|
√ |
|
|
Timer |
Around 30 Minutes |
√ |
|
|
General Characteristics |
|||
|
Power |
1.5V Batteries (LR14) x 8 |
||
|
LCD Size |
123mm x 58mm |
||
|
Product Color |
Red and Grey |
||
|
Product Weight |
1.2kg |
||
|
Product Size |
202mm×155mm×94mm |
||
|
Standard Accessories |
2pcs of one plug test lead to one alligator clip (Black and Green), 1pcs of two-plug test lead to one alligator clip (Red), Batteries |
||
|
Standard Individual Packing |
Gift Box, Tool Box, User Manual |
||
|
Standard Quantity Per Carton |
4pcs |
||
|
Standard Carton Measurement |
525mm x 335mm x 345mm |
||
|
Standard Carton Gross Weight |
13kg |
||
|
Optional Accessories |
Power Adapter |
||
