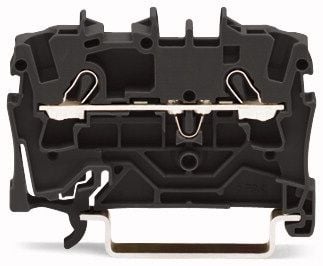

WAGO 2002-1205 İki İletkenli Klemens Siyah
Satış Fiyatı
30,43 TL
(Kdv Dahil)
İndirimli Fiyat
15,21 TL
(Kdv Dahil)
Kategori
Marka
Stok Kodu
2002-1205
Fiyat
0,73 EUR + KDV
*1,84 TL den başlayan taksitlerle!!
Teknik Bilgileri
| Name | Value | Unit |
| Total number of connection points | 2 | |
| Total number of potentials | 1 | |
| Color | Siyah | |
| Ratings according to 1 | IEC/EN 60947-7-1 | |
| Pollution degree (1) | 3 | |
| Nominal current [A] | 24 | A |
| Nominal current (2) [A] | 32 | A |
| Rated voltage EN (3) [V] | 800 | V |
| Rated surge voltage (3) [kV] | 8 | kV |
| Rated voltage EN (Ex e II) [V] | 550 | V |
| Nominal current (Ex e II) [A] | 22 | A |
| Nominal current (Ex e II) with jumper [A] | 20 | A |
| Connection technology (1) | Push-in CAGE CLAMP® | |
| Number of connection points (1) | 2 | |
| Nominal cross section | 2.5 mm² | |
| Solid sizes | 0.25 … 4 mm² / 22 … 12 AWG | |
| solid, directly pluggable | 0.75 … 4 mm² / 18 … 12 AWG | |
| Fine-stranded wires | 0.25 … 4 mm² / 22 … 12 AWG | |
| min. fine-stranded with insulated ferrule, push-in terminati | 0.75 mm² / 18 AWG | |
| Strip length | 10 … 12 mm / 0.39 … 0.47 in | |
| Type of wiring | Front-entry wiring | |
| Design | horizontal | |
| Marking level | Center/Side marking | |
| Insulating material | Polyamide 66 (PA 66) | |
| Fire load [MJ] | 0.109 | MJ |
| Weight [g] | 5.079 | g |
| Width | 5.2 mm / 0.205 in | |
| Height from upper-edge of DIN-rail [mm] | 32.9 | mm |
| Height from upper-edge of DIN-rail | 32.9 mm / 1.295 in | |
| Length | 48.5 mm / 1.909 in | |
| Type of mounting | DIN-35 rail |
