%58 İNDİRİM

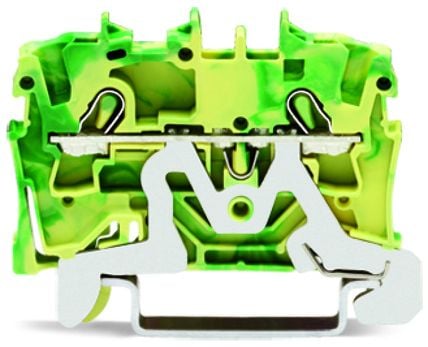

WAGO 2002-1207 Topraklamalı Sarı-Yeşil Klemens
Satış Fiyatı
186,94 TL
(Kdv Dahil)
İndirimli Fiyat
78,51 TL
(Kdv Dahil)
Kategori
Marka
Stok Kodu
2002-1207
Fiyat
3,19 EUR + KDV
Havale
77,73 TL
(%1,00 havale indirimi)
*14,68 TL den başlayan taksitlerle!!
Miscellaneous
| Name | Value | Unit |
| Total number of connection points | 2 | |
| Total number of potentials | 1 | |
| Color | green-yellow | |
| Ratings according to 1 | IEC/EN 60947-7-2 | |
| Connection technology (1) | Push-in CAGE CLAMP® | |
| Number of connection points (1) | 2 | |
| Nominal cross section | 2.5 mm² | |
| Solid sizes | 0.25 … 4 mm² / 22 … 12 AWG | |
| solid, directly pluggable | 0.75 … 4 mm² / 18 … 12 AWG | |
| Fine-stranded wires | 0.25 … 4 mm² / 22 … 12 AWG | |
| min. fine-stranded with insulated ferrule, push-in terminati | 0.75 mm² / 18 AWG | |
| Strip length | 10 … 12 mm / 0.39 … 0.47 in | |
| Type of wiring | Front-entry wiring | |
| Design | horizontal | |
| Marking level | Center/Side marking | |
| Insulating material | Polyamide 66 (PA 66) | |
| Fire load [MJ] | 0.087 | MJ |
| Weight [g] | 7.706 | g |
| Width | 5.2 mm / 0.205 in | |
| Height from upper-edge of DIN-rail [mm] | 32.9 | mm |
| Height from upper-edge of DIN-rail | 32.9 mm / 1.295 in | |
| Length | 50.8 mm / 2 in | |
| Type of mounting | DIN-35 rail |
